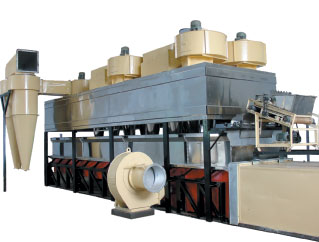

Vibro Fluid Bed Dryer

For Desiccated Coconuts

ZENITH presents latest & updated version of VFBD called "ZEST"- A value oriented dryer. Drying is the most sensitive stage of desiccated coconut. "ZEST" VFBD is the combination of science and technology, a dryer which meets all the parameters of making good desiccated coconuts.

"ZEST" VFBD is highly efficient using latest UK Technology fans and specially designed plenum chamber with controlled velocity of air. High thermal efficient and hence saves fuel. The grid plate configuration is specially designed to produce best quality of desiccated coconut.

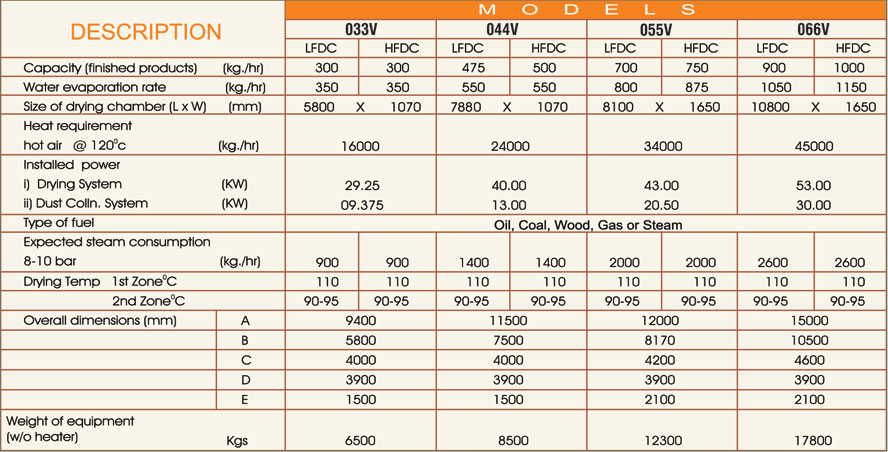

Technical Data of Zenith Vibro Fluid Bed Dryer

Coconut Dehusking Machine

COCONUT DE HUSKING MACHINE tears off the coconut husk from coconut fruit to obtain de husked coconut fruit.

Specifications
  • Mild steel construction
  • Fast and easy husk removal
  • Heavy duty construction
  • Geared motor drive
  • Used with any size of coconuts
  • Easy and quick maintenance.

Coconut Deshelling Machine

Coconut Deshelling Machine is manually operated and used for the removal of coconut hard shell and obtain the inner soft coconut fruit.

Specifications
  • Easy to learn and operate.
  • Easy and quick replacement of cutting blade.
  • Heavy duty construction
  • Geared motor drive.
  • Available with mild steel or SS-304 construction.
  • Easy and quick maintenance.
  • Can be used with any size of coconuts.
  • Can shell 250 to 400 coconuts per hour.

Lump breaker

Lump breaker consists of a rotor, which oscillates. When the product is fed into the Lump breaker the rotor gently pushes the dried desiccated coconut towards the bottom screen. Thus the lumps are loosened and fine desiccated coconuts are produced.

Specifications
  • SS-304 construction.
  • Low maintenance; Easy to clean.
  • No oil generation ; No blockage.
  • Easy replacement of the screen.
  • Less power required.
  • No wastage of product.
  • Hygienic process of loosing of lumps.
  • Available from 100 kg per hour to 1000 kg per hour.

Coconut Pre-Cutter

Coconut Pre-Cutter Machine is used to cut the white coconut balls into smaller pieces before feeding to pin mill.

Specifications
  • SS-304 construction.
  • Easy maintenance.
  • Easy to clean.
  • Dewatering and water collection chamber.
  • No blockage.
  • Three phase electric motor drive.

Rotary Washer

Rotary washer has a rotating drum with two stage washing system. High pressure waster is sprayed on the products while rotating inside the drum. In this system there is no blockage and uniform cleaning of all coconuts is ensured. This machine can also be used in washing of any type of vegetables, fruits, raisins etc.

Specifications
  • SS-304 construction.
  • Easy maintenance.
  • High pressure water sprayer washing system.
  • Two stage washing system.
  • Inspection window on top side.
  • Three phase electric geared motor drive.
  • Bottom water collecting hopper with outlet discharge pipe.
  • Provision for hot water sprayer.

Coconut Flow Washing Machine

Two stage stainless steel tank where water is filled and circulated using a high pressure pump. As the coconuts, vegetables, fruits are fed into the tank, water pressure makes the products to ow further. A specially designed SS-304 conveyor is used to move the products to the second tank. This Two stage washing system is easy to clean and maintain.

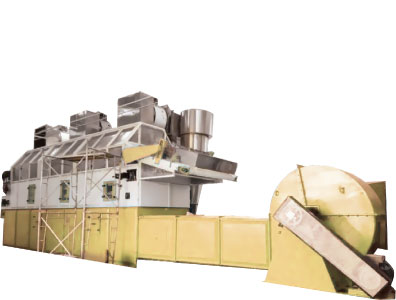

Cocopro Combination Dryer

Salient Features
  • Stainless Steel Grid Plates.
  • SS Trays in the Top Circuit & Bottom Circuit.
  • High Temperature resistant Chains made of alloy.
  • Steel with Electronic overload protection feature.
  • Full width feed conveyor.
  • Insulated Centrifugal Hot Air Fan.
  • Double Wall Insulated Chamber.
  • Digital Thermometers.
  • Variable Speed Drive.
  • Floor mounted Central Electrical Control Panel.

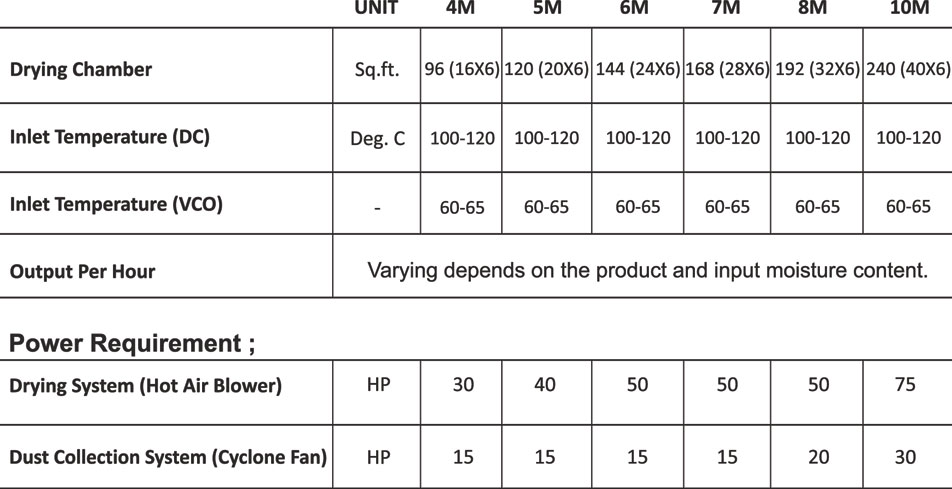

Technical Sepcification
